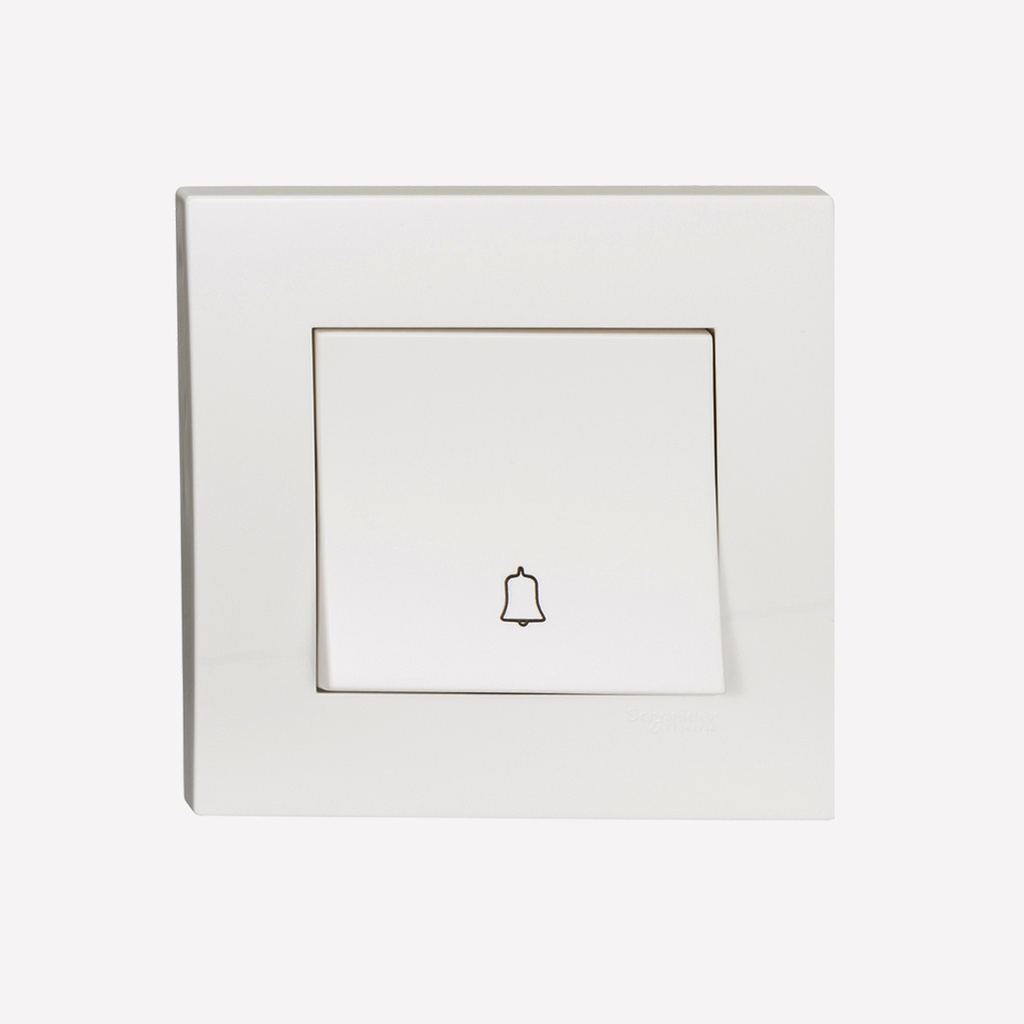

10A 1G BELL SWITCH WHITE VIVACE - SCHNEIDER
1COLOR : WHITE
1 GANG
SKU:
N/A
Brand:
SCHNEIDER
Series:
SCHNEIDER VIVACE
Specifications
| range | Vivace |
|---|---|
| product or component type | Bell press switch |
| device short name | KB31 |
| device application | Control |
| device presentation | Complete mechanism |
| Additional switch application | Bell switch |
| switch function | 1-way |
|---|---|
| actuator | Rocker |
| number of gangs | 1 gang |
| colour tint | White |
| material | Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base |
| projecting depth | 8 mm |
| device mounting | Flush |
| mounting support | Wall mounted |
| fixing mode | By screw M3.5 |
| fixing center | 60.3 mm |
| embedding depth | 35 mm |
| rated current | 10 A at 250 V AC, inductive |
| [Ue] rated operational voltage | 250 V AC |
| network frequency | 50 Hz |
| contacts material | Brass and phosphor bronze |
| connections - terminals | Pillar terminal |
| terminal identifier | L1 L2 COM |
| tightening torque | 0.4 N.m |
| clamping connection capacity | 1.5 mm² |
| width | 87 mm |
| height | 87 mm |
| standards | SS 227 MS IEC 60669-1 IEC 60669-1 |
|---|---|
| ambient air temperature for operation | -5…40 °C |
| relative humidity | 0…95 % |
| environmental characteristic | Indoor use |
